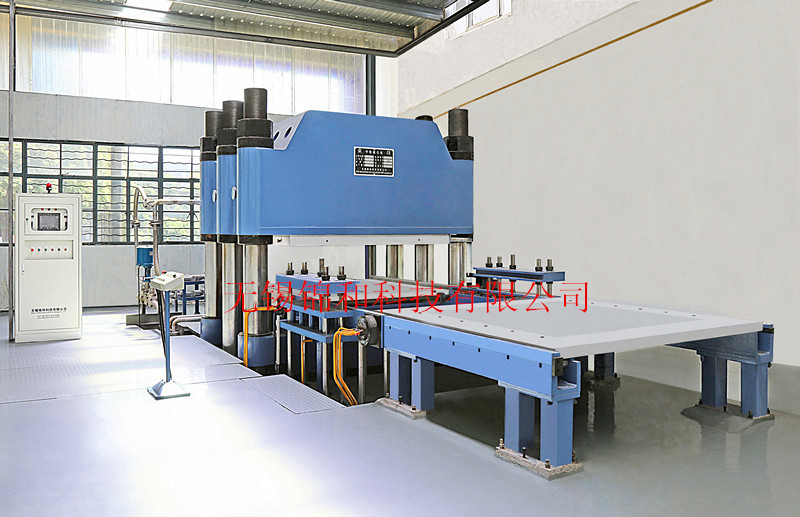

1000-1500mm Vulcanized Rubber Mold Machine Press With Frame Columns

1000-1500mm Vulcanized Rubber Mold Machine Press With Frame Columns
Features Gallery Product Description Request A Quote
Distance Between Platens: 1000~1500mm
Heating Method: Electric/Steam/Oil
Material: Cast Iron/Steel/Stainless Steel
Model: 2000T Vulcanizing Machine
Platen Diemension: 2500 X 2500 Mm
Product Name: 2000T Rubber Vulcanizing Machine
Qty. Of Layers: 1
Structure: Frame / Columns
High Light:

rubber vulcanizing press


vulcanizer press


vulcanizing press machine

Basic Infomation
Payment & Shipping Terms
Product Description

Distance between Platens 1000-1500mm Rubber Vulcanizing Machine with Frame / Columns

Product Description:

The Hydraulic Rubber Molding Machine, also known as the Hydraulic Vulcanizing Press or Hydraulic Vulcanizing Press Machine, is a must-have for every industrial rubber application. It is suitable for a wide range of rubber products, including tires, seals, and gaskets. With its advanced hydraulic pressure and temperature range, it can process different types of rubber with ease. This rubber vulcanizing machine is equipped with an electric, steam, or oil heating method, and has a voltage of 220V/380V/415V/440V. It has a robust frame and columns structure that can handle the extreme pressure and temperature range that the rubber vulcanizing machine generates. The temperature range is 0-200℃, and the hydraulic pressure can reach up to 0-22Mpa. With such high-performance features, the Hydraulic Rubber Molding Machine is an ideal choice for rubber vulcanization.



  • Product Name: Rubber Vulcanizing Machine
  • Heating Method: Electric/Steam/Oil
  • Qty. of Layers: 1
  • Voltage: 220V/380V/415V/440V
  • Platen Diemension: 2500 X 2500 Mm
  • Hydraulic Pressure: 0-22Mpa
  • Hydraulic Vulcanizing Press
  • Automatic Vulcanizing Machine
  • Hydraulic Vulcanizing Press Machine

Technical Parameters:

Parameters Details
Product Name 2000T Rubber Vulcanizing Machine
Control System PLC
Hydraulic Pressure 0-22Mpa
Material Cast Iron/Steel/Stainless Steel
Qty. of Layers 1
Structure Frame / Columns
Distance between Platens 1000~1500mm
Platen Dimension 2500 X 2500 Mm
Temperature Range 0-200℃
Voltage 220V/380V/415V/440V


The 2000T Vulcanizing Machine is an ideal choice for rubber molding and vulcanizing. It is equipped with a 2500 X 2500 mm platen dimension and adjustable distance between platens from 1000 to 1500 mm. The cutting-edge PLC control system ensures precise operations and allows users to customize the hydraulic pressure from 0 to 22Mpa. The machine is a perfect solution for various hydraulic rubber molding and automatic vulcanizing projects. It is widely used in the fields of automotive, industrial, electronic and medical, providing powerful performance to meet the customer's demands for high-precision hydraulic rubber molding and vulcanizing. The 2000T Vulcanizing Machine is the perfect choice for anyone in need of a reliable hydraulic vulcanizing machine.



Customized Service for Rubber Vulcanizing Machine

Model: 2000T Vulcanizing Machine

Qty. of Layers: 1

Distance between Platens: 1000~1500mm

Structure: Frame / Columns

Heating Method: Electric/Steam/Oil

We provide customized service for Hydraulic Vulcanizing Machine and Hydraulic Rubber Molding Machine. Our 2000T Vulcanizing Machine has one layer, 1000~1500mm distance between platens, frame/columns structure and electric/steam/oil heating method.


Support and Services:

Rubber Vulcanizing Machine Technical Support and Service

We provide comprehensive technical and after-sales services to ensure that the Rubber Vulcanizing Machine works efficiently and is in optimal condition. Our support includes:

  • 24/7 online support
  • On-site installation and commissioning
  • Troubleshooting and repair
  • Regular maintenance and inspection
  • Spare parts supply
  • Software update and upgrade
