5l Pe Eva Sbr Rubber Lab Kneader Machine

5l Pe Eva Sbr Rubber Lab Kneader Machine
Features Gallery Product Description Request A Quote
Operation Capacity: 5 L
Application: For Eva Pe Epdm Foam Or Rubber Product
Full Capacity: 10.3 L
Feeding Mode: Foreside Feeding
Production Capacity: 5~6 KG/batch
Main Motor Power: 15 KW
Rotary Speed Of Mixing Axle: 35/27
Weight Of Machine: 1600 KG
Temperature Control Type: Cooling Water Or Others
Tipping Angle: Max. 135 °
Bearing Brand: TWB (USA)
Color: Gray
High Light:

Rubber Lab Kneader


Lab Kneader Machine


laboratory kneader

Basic Infomation
Model Number: 5 L
Payment & Shipping Terms
Delivery Time: 60~90 days
Payment Terms: T/T
Product Description

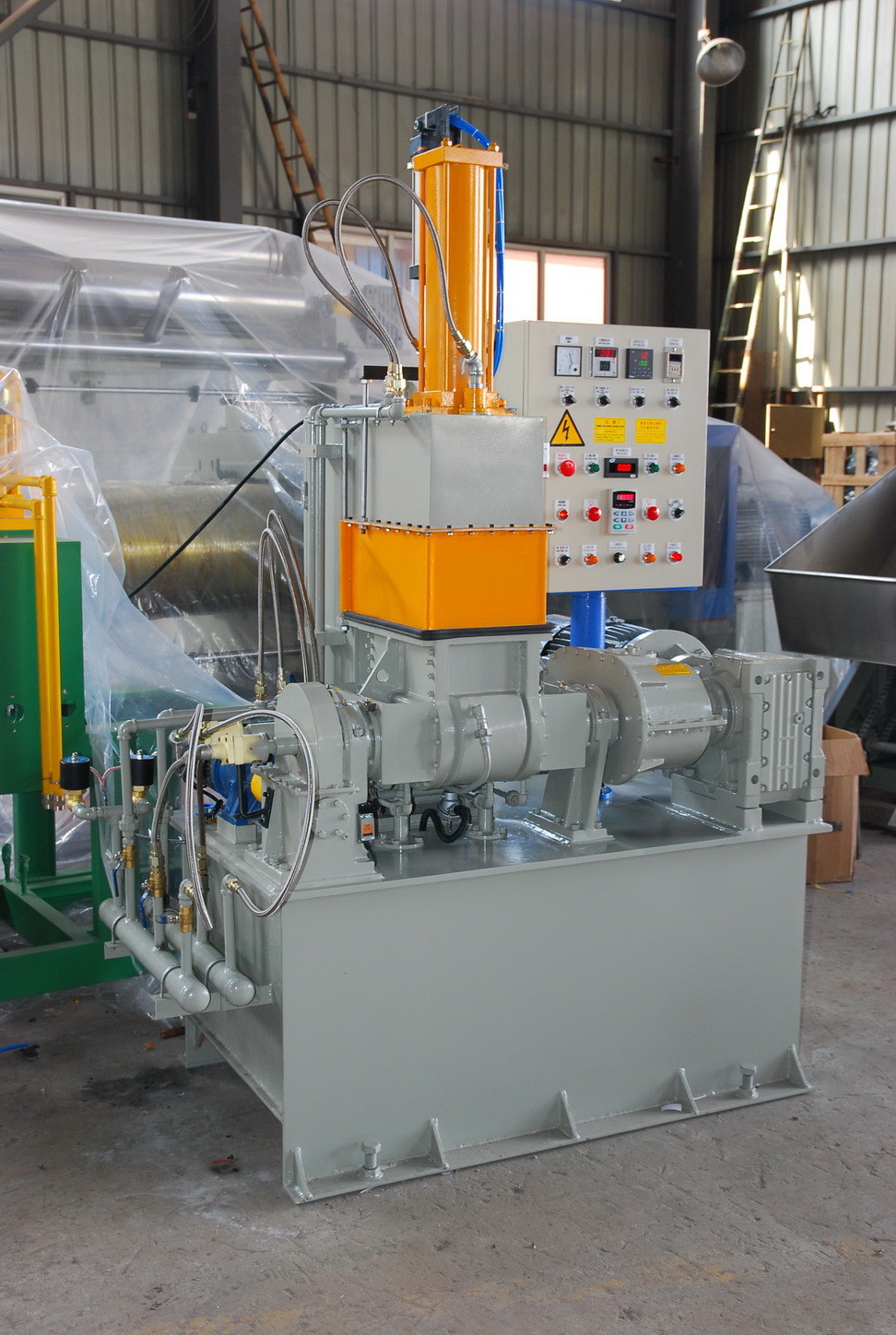

This kneader machine is a rubber kneader mixer, which is with advanced technology.It is designed to provide excellent performance while kneading rubber, plastic, and other materials in the industries of shoes, tires, cables, and plastics.


1. This machine works with a fully-automatic temperature and time control system. The operation is precise, simple and easy. The mixing can achieve the best effects of dispersal and evenness.

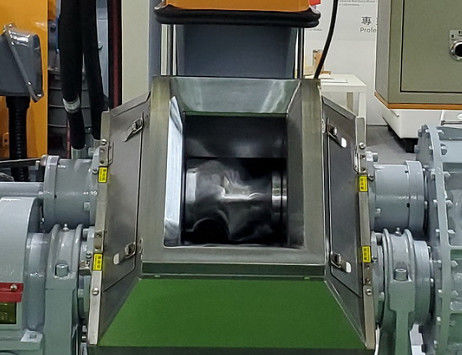

2. The mixing chamber is tilt-able. The dry mechanical shaft sealing is adopted for the mixing shaft leakage so that the cleaning and color changing can be easier.


3. The pressure sealed mixing chamber can not only ensure the quality of the mixture but also prevent environment pollution.


4. The mixing chamber is made of top quality alloy steel. Its surface has been treated for abrasion resistance. The coated hard chromium on the surface is of superb anti-abrasion quality.




1. The bearings of whole machine come from American brand TWB


2. The mixig shaft is mad of 20CrMo alloy stte forging parts, while for the position where can be worm easily is welded by wearing-resistance rapid steel from Germany additionally as well as hard chrome plating, so the performance become more excellent.


3.For the side leak-proof device, adopt high-tech material epoxy glass-cloth for manufacturing through high-pressuring die-casting. The features are anti-wearing, easy-to-maintain and no chemical reaction.


4.With "M" structure for pressuring gland, the mixing of rubber material becomes evener and more complete.

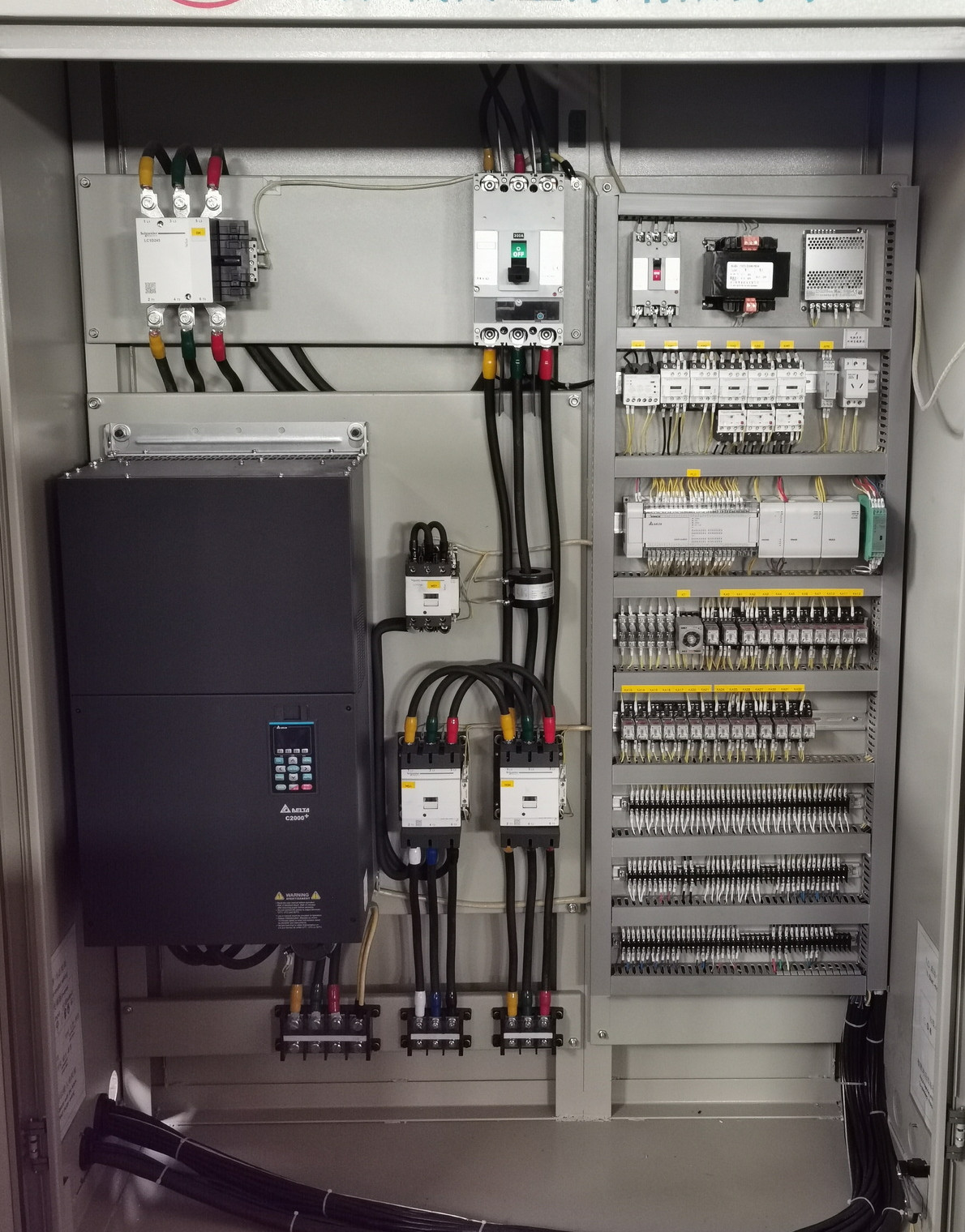

5.All the main electric parts are imported from Taiwan TANA or Omron.

Technical Parameters:

Parameter Value
Operation capacity 5 L
Full capacity 10.3 L
Production Capacity 5~6 Kg/batch
Main Motor Power 15 KW 6P AC (SIEMENS)
Rotary speed of mixing axle 35/27 rpm
Feeding Mode Foreside Feeding
Weight 1600 KG


Optional choices:

1.18.5KW Inverter (Taiwan DELTA)

2.Stainless cover on chamber ( easy for clean )

3.PLC+10" Touch PAD (Taiwan DELTA)

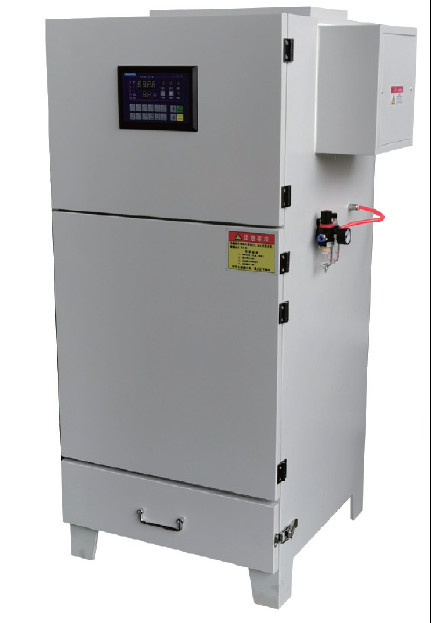

4. Dust coolector
