110L PE EVA SBR kneader machine RUBBER

110L PE EVA SBR kneader machine RUBBER
Features Gallery Product Description Request A Quote
Features
Specifications
Operation Capacity: 110 L
Application: For Eva Pe Epdm Foam Or Rubber Product
Full Capacity: 228 L
Feeding Mode: Foreside Feeding
Production Capacity: 110~140 KG/batch
Main Motor Power: 160 KW
Rotary Speed Of Mixing Axle: 32/25 Rpm Or 38/29
Weight Of Machine: 14000 KG
Temperature Control Type: Cooling Water Or Others
Tipping Angle: Max. 140 °
Bearing Brand: TWB (USA)
Color: Gray
High Light:

SBR kneader machine

,

kneader machine RUBBER

,

EVA kneader machine

Basic Infomation
Model Number: 110 L
Payment & Shipping Terms
Delivery Time: 60~90 days
Payment Terms: T/T
Product Description

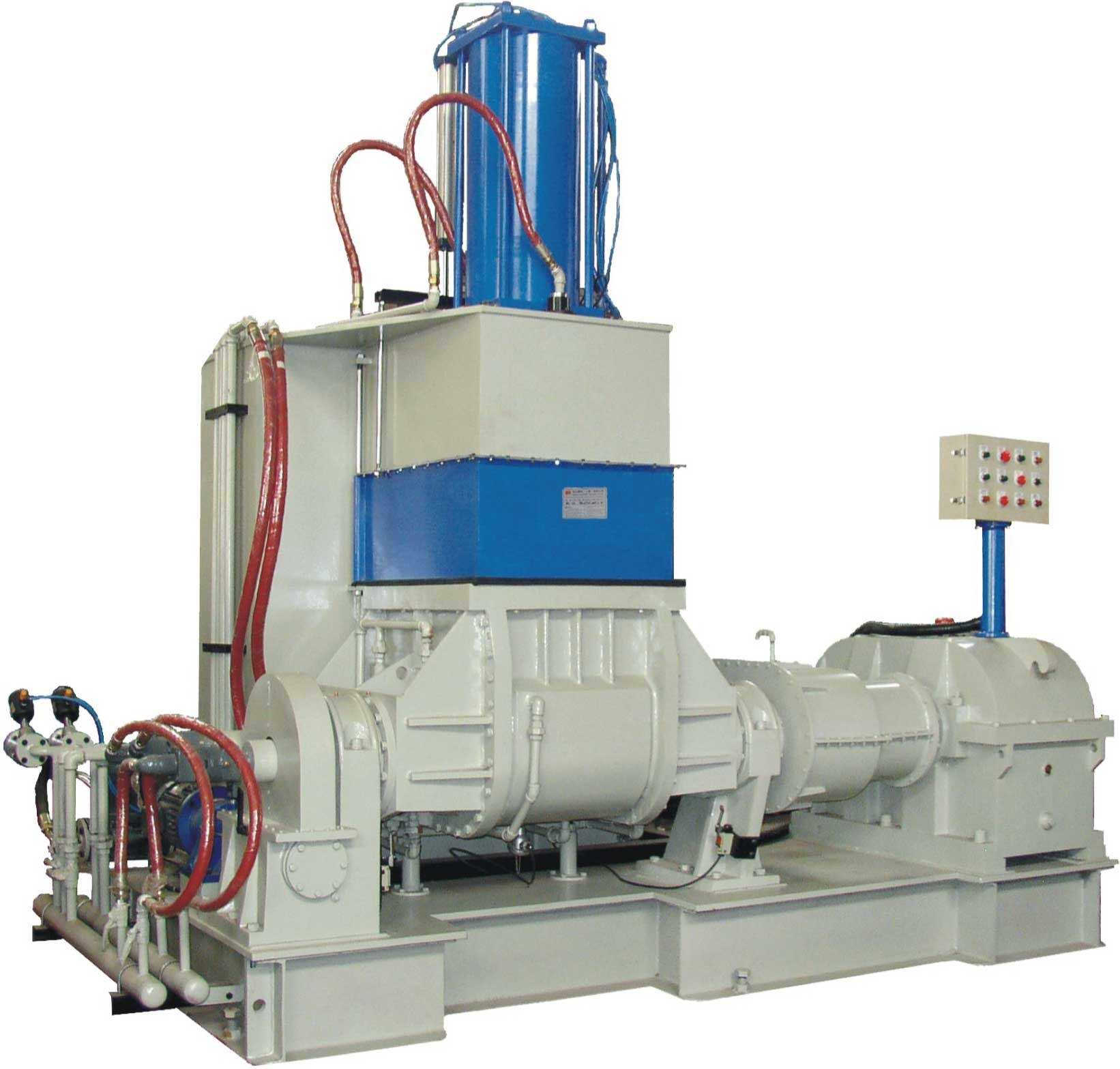

110L PE EVA SBR RUBBER kneader machine

Desciprtion



This kneader machine is a rubber kneader mixer, which is with advanced technology.It is designed to provide excellent performance while kneading rubber, plastic, and other materials in the industries of shoes, tires, cables, and plastics.



1. This machine works with a fully-automatic temperature and time control system. The operation is precise, simple and easy. The mixing can achieve the best effects of dispersal and evenness.



2. The mixing chamber is tilt-able. The dry mechanical shaft sealing is adopted for the mixing shaft leakage so that the cleaning and color changing can be easier.



3. The pressure sealed mixing chamber can not only ensure the quality of the mixture but also prevent environment pollution.



4. The mixing chamber is made of top quality alloy steel. Its surface has been treated for abrasion resistance. The coated hard chromium on the surface is of superb anti-abrasion quality.





Features:

1. The bearings of whole machine come from American brand TWB



2. The mixig shaft is mad of 20CrMo alloy stte forging parts, while for the position where can be worm easily is welded by wearing-resistance rapid steel from Germany additionally as well as hard chrome plating, so the performance become more excellent.



3.For the side leak-proof device, adopt high-tech material epoxy glass-cloth for manufacturing through high-pressuring die-casting. The features are anti-wearing, easy-to-maintain and no chemical reaction.



4.With "M" structure for pressuring gland, the mixing of rubber material becomes evener and more complete.

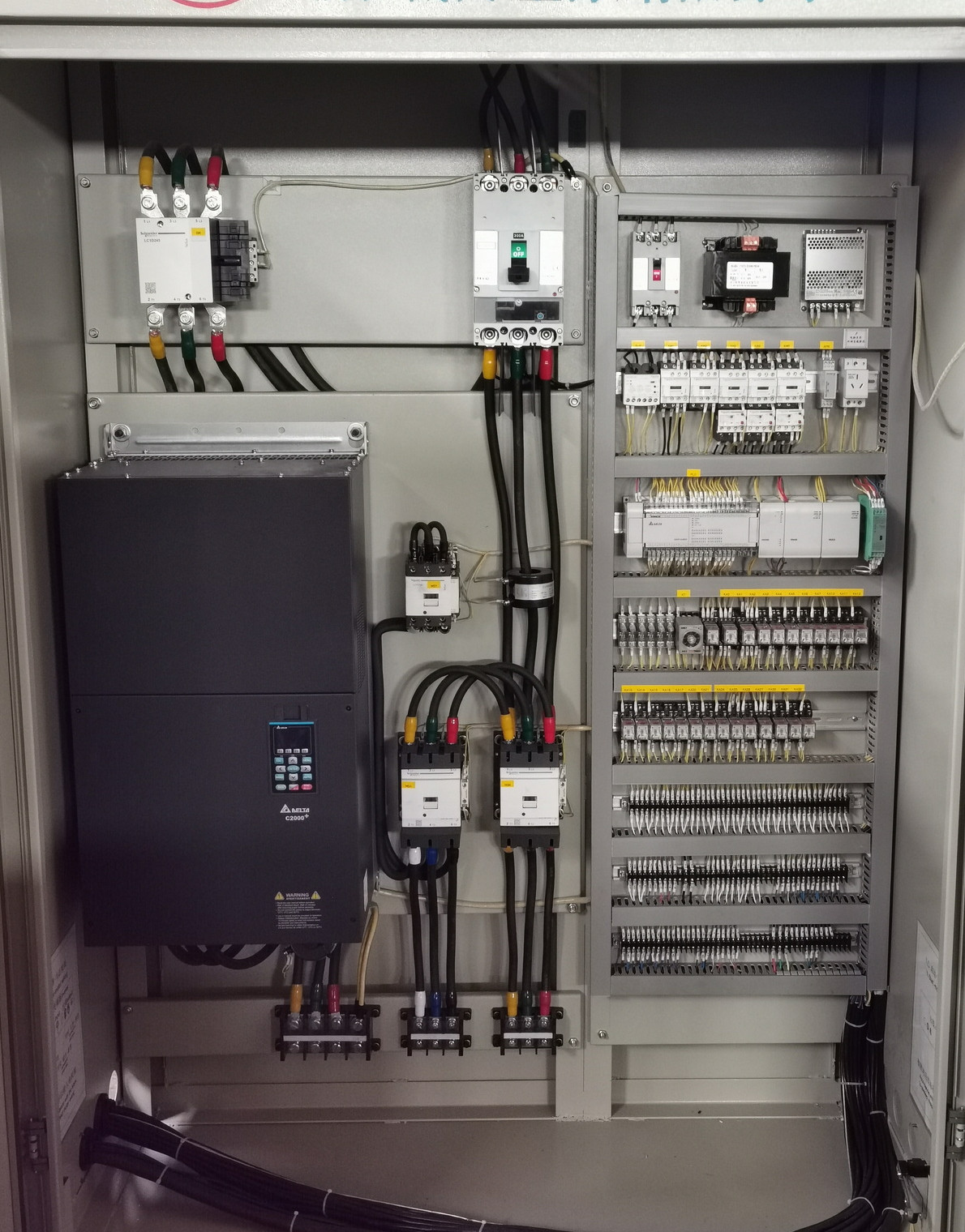

5.All the main electric parts are imported from Taiwan TANA or Omron.

Technical Parameters:

Parameter Value
Operation capacity 110 L
Full capacity 228 L
Production Capacity 110~140 Kg/batch
Main Motor Power 160 KW 6P AC (SIEMENS)
Rotary speed of mixing axle 32/25 rpm or 38/29 rpm
Feeding Mode Foreside Feeding
Weight 14000 KG



Optional choices:

1.132KW Inverter (Taiwan DELTA)

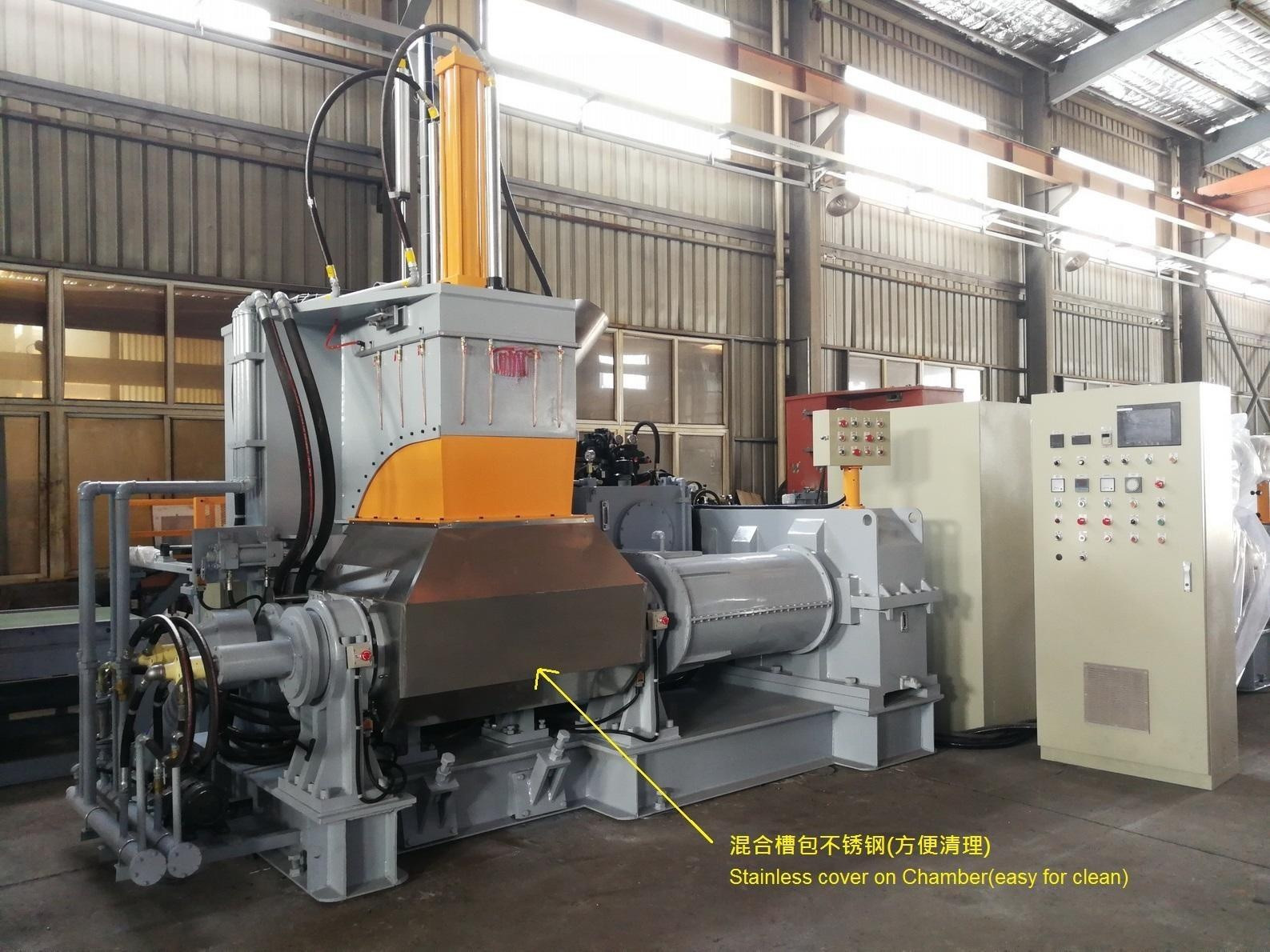

2.Stainless cover on chamber ( easy for clean )

3.PLC+10" Touch PAD (Taiwan DELTA)

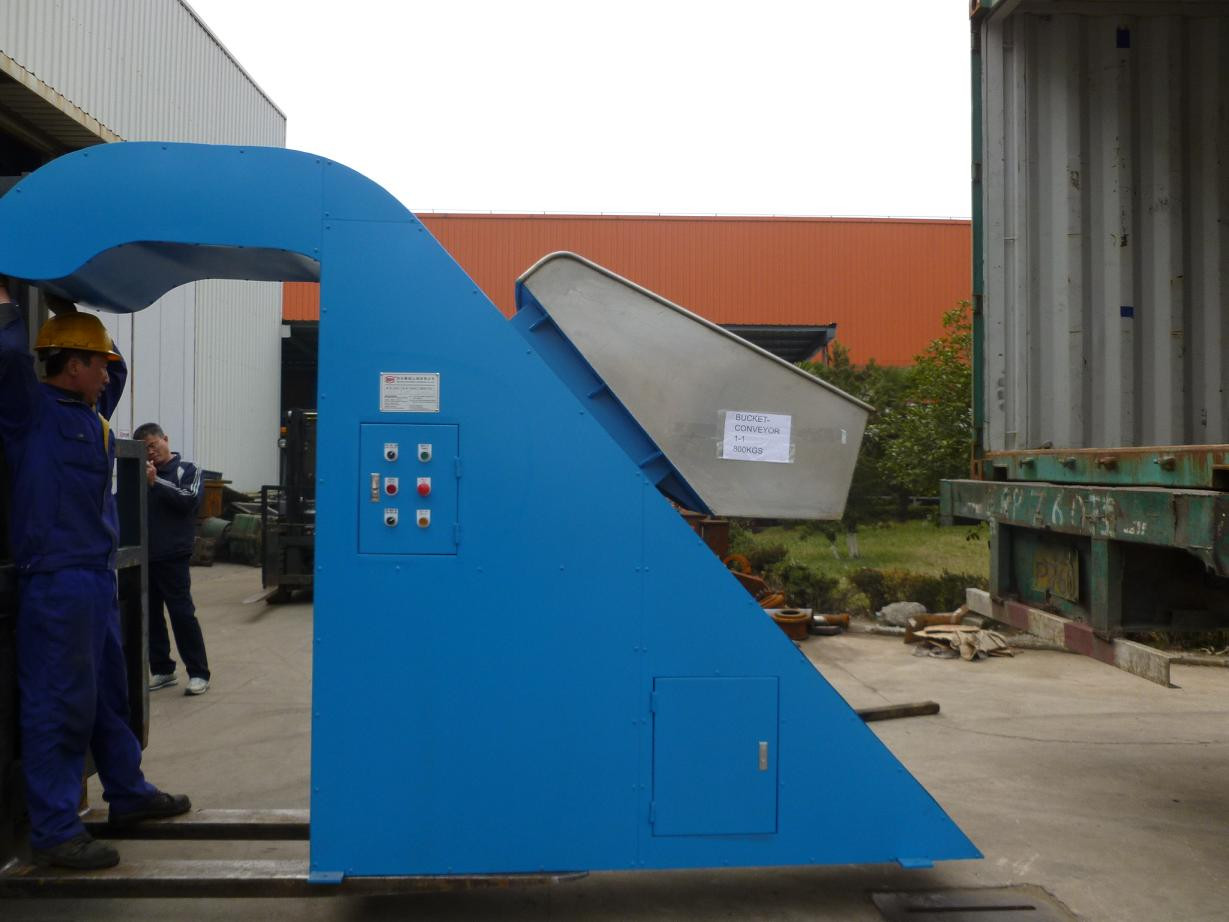

4. Bucket conveyor
