36 Inch 1350T EVA PE EPDM SBR Foaming Press Machine

36 Inch 1350T EVA PE EPDM SBR Foaming Press Machine
Features Gallery Product Description Request A Quote
Clamping Force: 1350T
Platen Size: 1350 X 1800 Mm
Layers: 6
Distance Between Layers: 180 Mm
Distance Between Columns: 1800 Mm
Diameter Of Cylinder: φ915 Mm / 36 Inch
Main Motor Power: 22 KW
Weight: 60 T
Overall Size: 2400 X 2120 X 5280 Mm
High Light:

EPDM foaming press machine


SBR foaming press machine


PE foaming press

Basic Infomation
Model Number: 36 inch
Payment & Shipping Terms
Delivery Time: 60~100 days
Payment Terms: T/T
Product Description

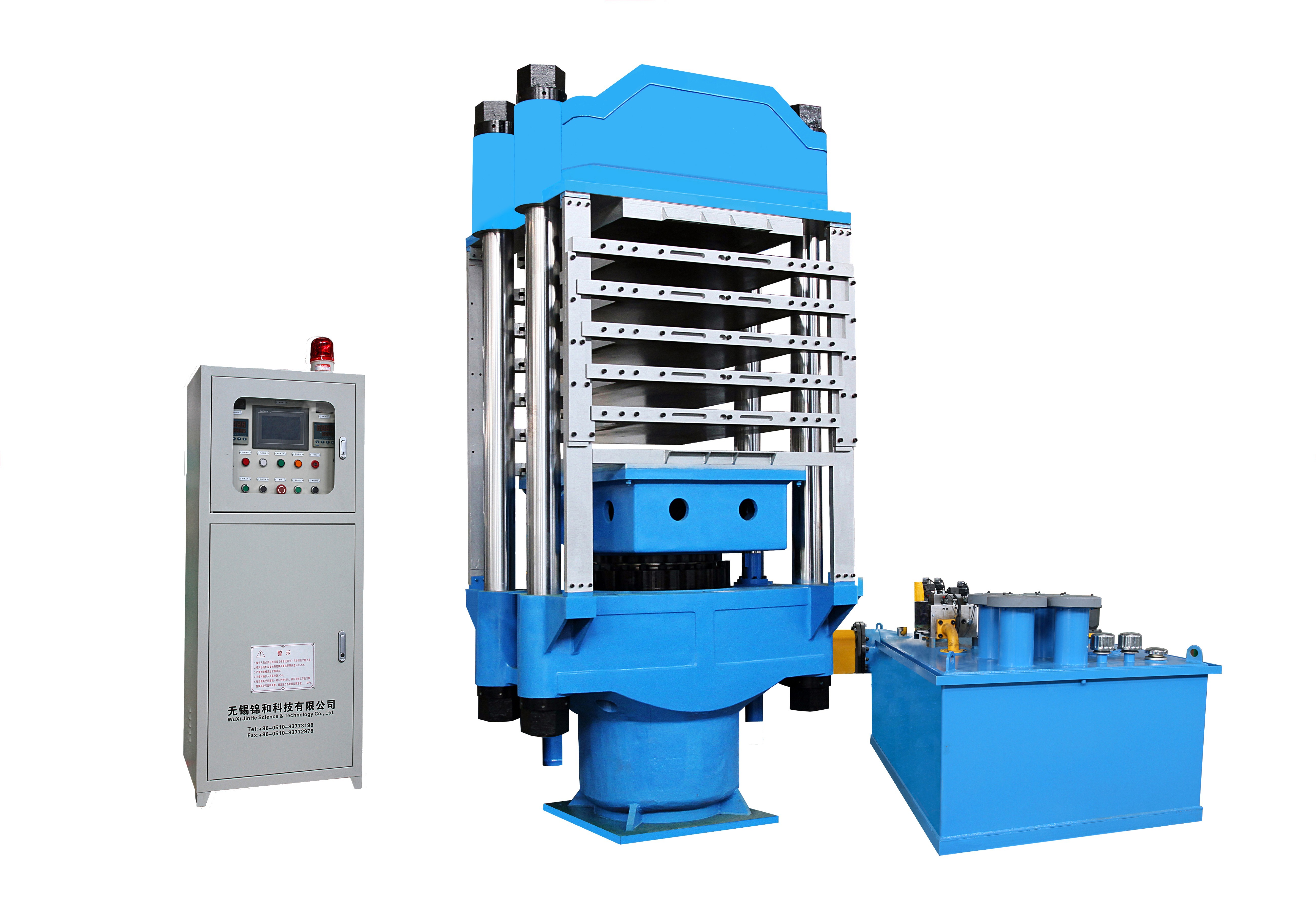

36 inch 1350T EVA PE EPDM SBR foaming press


  • Strong structure

The frame is strong enough to make sure the the material would not be come out.

  • Fast open

The molds could be open in 1second to make sure the cell in the foam is uniform.

  • Uniform temperature

The temperature difference could be controlled in ±1℃, so that the color of the sheet is uniform.

  • Automatically control

We use PLC to control the system and the whole process could be automatic or manual controlled.



Technical Parameters

No. Main technical parameters Discription
1. Clamping  force 1350 Tons
2. Platen size 1350 x 1800 mm
3. Layers 6
4. Distance between layers 180 mm
5. Distance between columns 1800 mm
6. Diameter of cylinder 36 inch /  φ915 mm
7. Heating method steam / hot oil
8. Control method auto control by PLC
9. Temperature difference ± 1 ℃
10. Temperature range Max. 180 ℃

Optional choice

1. Optimized thermal insulating board


2. Synchronizing mechanism

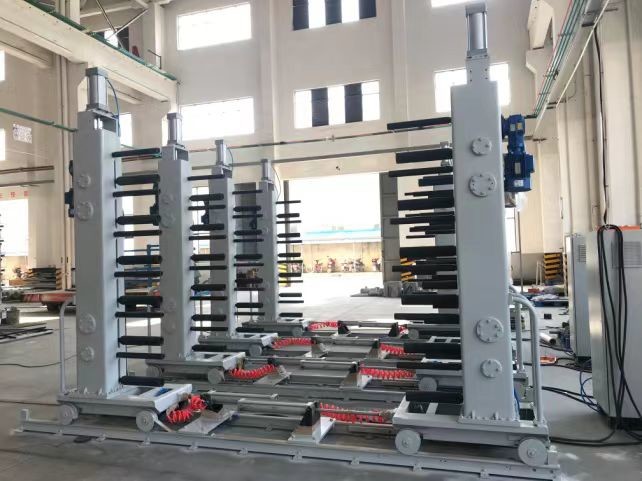

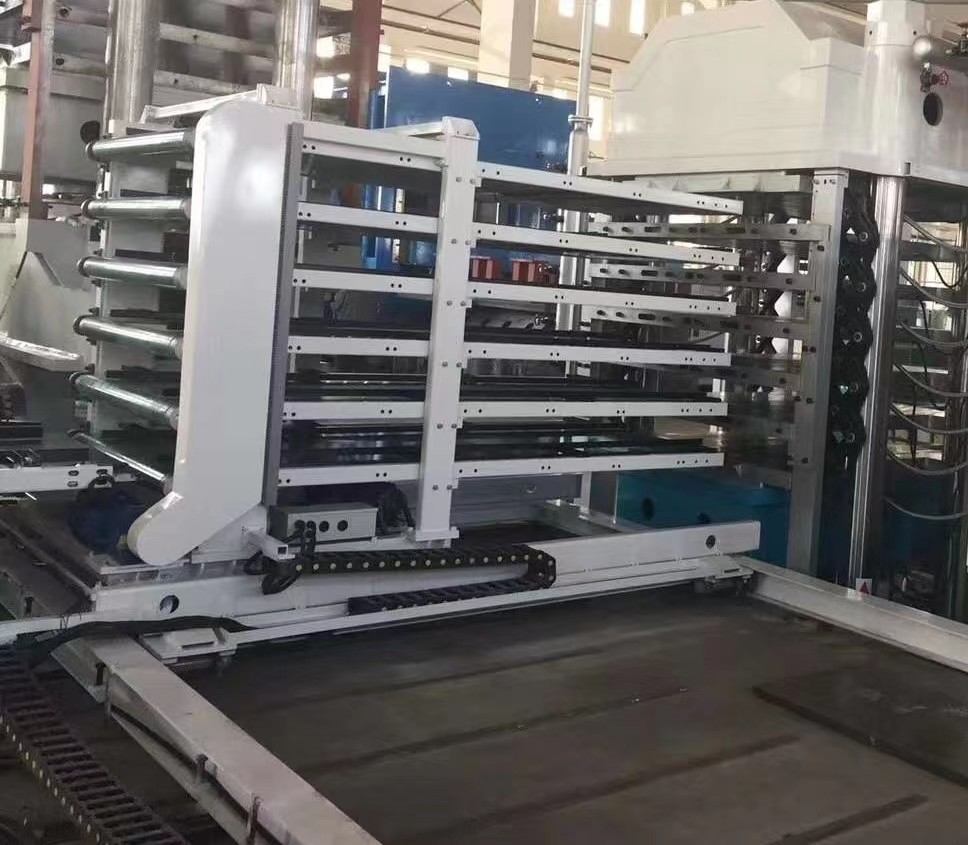

3. Auto-loading and unloading system


4.Heating oil boiler


5. Steam temperature-control system
